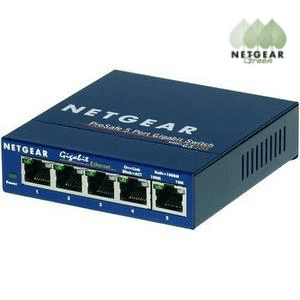

Netgear GS105NA ProSafe 5-Port Unmanaged Gigabit Switch

Netgear GS105NA is a 5-Port Unmanaged Gigabit Switch that is part of Netgear's Unmanaged Switch Series, designed to cost-effectively help businesses expand their networks to Gigabit speeds.

Netgear GS105NA 5-Port Unmanaged Gigabit Switch Product Overview

The GS105NA comes with five copper ports in a desktop metal case and is also wall-mountable. This switch is energy efficient and tested to provide 802.1p traffic polarization and its jumbo frame support allows for seamless integration with more sophisticated networks. The GS105NA is a Plug-and-Play switch that senses and adjusts for network speed and cabling type automatically. This switch easily integrates with the existing Ethernet Network whether it is running at 10/100Mbps or Gigabit speed. The GS105NA provides superior performance while allowing users to prioritize voice and video traffic.

Netgear GS105 Specifications:

Network Ports

• 5 auto-sensing UTP ports

Forwarding Mode

• Store-and-forward
• 128 KB on-chip packet buffering

Status LEDs

• System power
• Link, speed, and activity indicators per port built into each RJ-45 port

AC Power

• Power adapter: 12W, 12V DC, 1A
• Maximum power consumption: - 3.5W

Standards Compliance

• IEEE 802.3i 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• Honors IEEE 802.1p and DSCP priority tags
• Jumbo frame: up to 9,720 bytes

Warranty

• Switch: NETGEAR Lifetime Warranty††
• Power adapter: NETGEAR 2-year warranty

Pro-Support Service Packs Available

On-Call 24x7, Category 1

• PMB0331-100 (US)
• PMB0331 (non-US)

XPressHW, Category 1

• PRR0331

Package Contents

• ProSafe 5-port or 8-port Gigabit Desktop Switch 10/100/1000 Mbps (GS105v3 or GS108v3)
• Wall-mount kit
• AC adapter
• Installation guide
• Warranty/support information card
