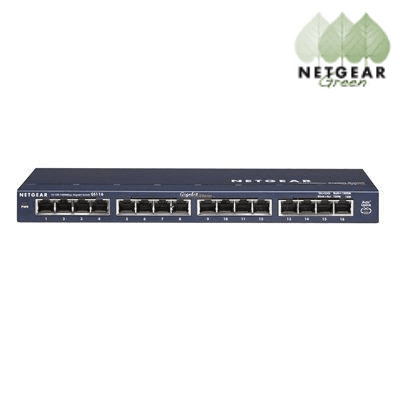

Netgear GS116NA ProSafe 16-Port 10/100/1000 Switch

The Netgear GS116NA is an unmanaged 16-port Gigabit 10/100/1000 Desktop switch that provides a powerful, high-speed network on a small scale. The GS116 lets you build a system that gives full dedicated 1000 Mbps connections, suitable for instantaneously moving large files across the network. This standards-based switch allows you to integrate your existing or future VoIP infrastructure with 10, 100, and 1000 Mbps devices.

Netgear GS116NA ProSafe 16 Port Gigabit Desktop Switch Overview

The GS116 is perfect for workgroups or upgrading workstations to Gigabit speeds. It has a compact, and fan-less, unobtrusive design. This switch features 10/100/1000 auto-switching Mbps Ethernet connections, and the copper Gigabit Ethernet offers up to 2000 Mbps on each port. This switch is also versatile enough to honor Layer 2 802.1p and Layer 3 DSCP traffic priority tags. The size of the GS116 is convenient for both desktop and wall mounting, and it has a fan-less design for silent operation.

Netgear GS116 Features and Specifications:

Network Ports

• 16 auto-sensing 10/100/1000 Mbps UTP ports

Forwarding Mode

• Store-and-forward

Performance

• Bandwidth: 32 Gbps (non-blocking)
• Forward rate (10 Mbps port): 14,800 packets/sec
• Forward rate (100 Mbps port): 148,000 packets/sec
• Forward rate (1000 Mbps port): 1,488,000 packets/sec
• Latency (100 to 100 Mbps): 40 µ (max)
• Latency (1000 to 1000 Mbps): 10 µ (max)
• Queue buffer memory: 512 Kbytes per port
• MAC address database: 8,000
• Acoustic noise: 0 dB
• Heat dissipation: 38.8 Btu/hr
• Meantime between failures (MTBF): 393,000 hours (~45 years)

Power Consumption

• 12V DC, 1.5A, 18W; the plug is localized to the country of sale

Status LEDs

• Power, link, speed, and activity
• Electromagnetic Compliance

CE Class A

• FCC Part 15 Class A
• EN 55022 (CISPR 22)
• EN 55024
• VCCI Class A
• C-Tick Class A

Standards Compliance

• IEEE 802.3i 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• Honors 802.1p priority tags
• Honors DSCP priority tags
• Jumbo frame support: up to 16 KB

System Requirements

• Category 5e cables or better
• Network card for each PC or server (e.g. NETGEAR GA311)
• Network software (e.g., Microsoft® Windows®, Linux®, Mac® OS)
• ProSupport™ Service Packs Available

OnCall 24x7

• PMB0331-100 (US)
• PMB0331 (non-US)

XPressHW

• PRR0331

Package Contents

• ProSafe 16-port Gigabit Desktop Switch (GS116v2)
• Wall-mount kit
• AC adapter
• Installation guide
• Warranty/support information card
